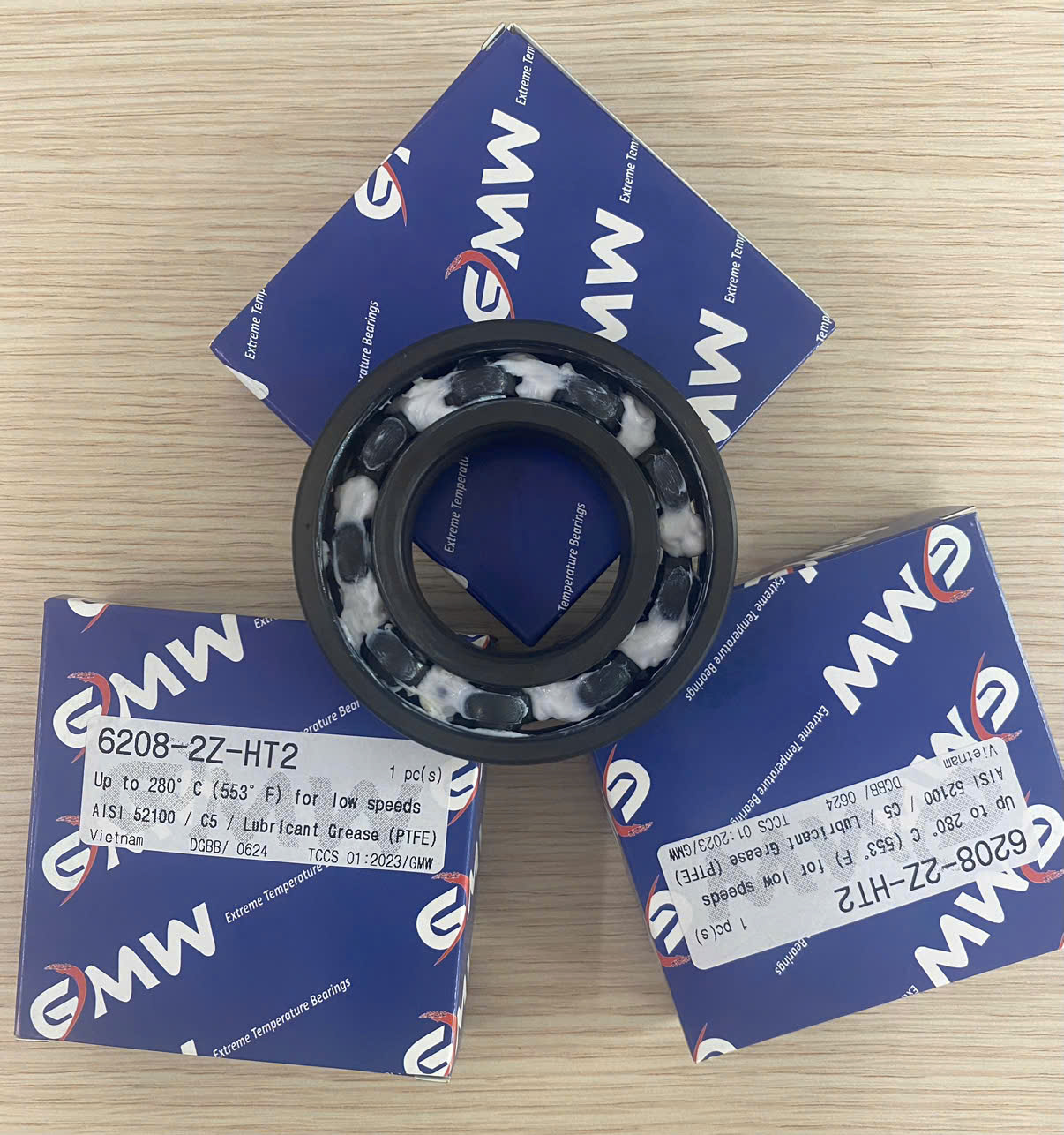

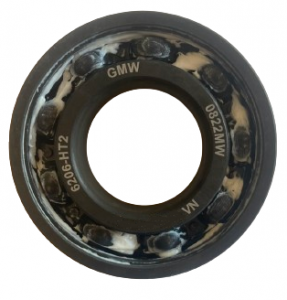

High Temperature Bearings 280°C (HT2)

GMW high-temperature deep groove ball bearings with suffix HT2 are suitable for slow speeds and temperatures up to a maximum of 280°C. Depending on the application, these bearings allow stable operation without maintenance.

All HT2 bearings have the following basic features:

• Made from Chromium steel material
• C5 clearance design compensates for temperature-induced distortion
• Adaptable to temperatures up to 280°C (effective operating temperature 260°C)
• Manganese phosphate Mn₃(PO₄)₂ Surface coating (according to EN ISO 9717) ensures enhanced protection against corrosion.
• Special polytetrafluoroethylene (PTFE) heat-resistant grease for smooth movement
• Riveted steel plate roller cage provides high stability but low friction

Full range of product codes, such as:

• 6000 … 6022
• 6200 … 6222
• 6300 … 6322
• There are many types to choose from: No grease cover (open), two heat-resistant steel covers (2Z)

Fields of application:

• Paint Ovens, Glass manufacturing
• Steel industry, die-casting machine
• Furnaces for Ceramic Industry
• Trolley Industry, Trolley for Brick Kilns Industry
• Etc…

Replacement for: SKF VA201/VA216 | SNR F604 | SWC HT2 | ENC ENC270CL | BECO BHTS280°
